Piping Engineering In the Physical Era: Tactile Design and Scale Models

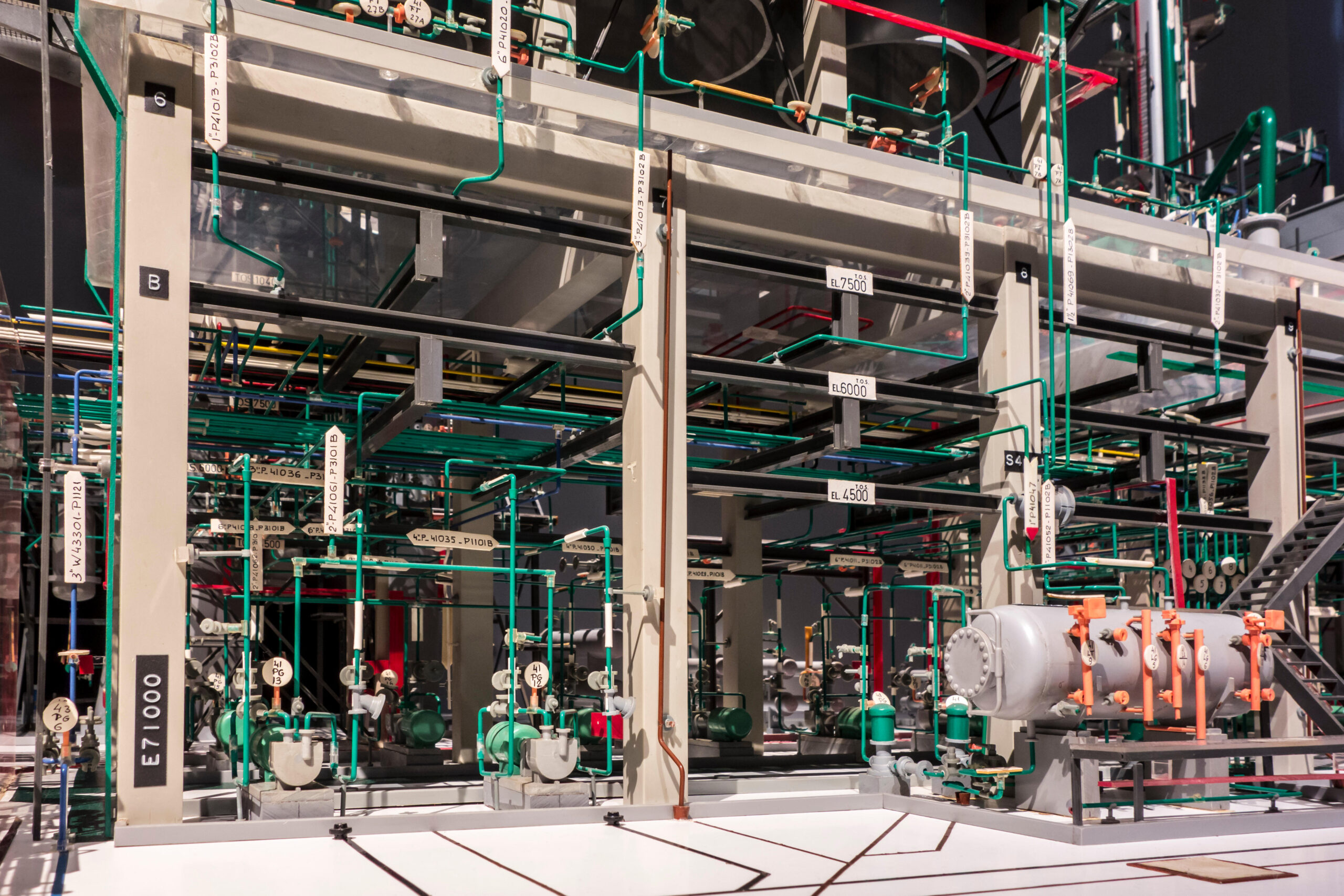

Before digital tools dominated the landscape, piping design was tangible. Physical scale models constructed meticulously from plastic, wood, and metal components served as the centerpiece of project planning, design, review, and construction.
These models weren’t merely visual aids; they were working tools. Design teams would gather around them for hours, using colored strings to trace potential pipe routes, marking clearance issues with tape, and physically measuring to ensure constructability. One significant advantage they offered was an intuitive sense of scale and spatial relationships that early digital tools struggled to replicate.
The physical model era had its share of limitations: changes were labor-intensive, documentation required separate manual drafting, and transporting these delicate creations between facilities could be a logistical challenge. However, the intrinsic connection between designer and design fostered a deep understanding of spatial relationships and constructability that remains valuable today.
The 2D CAD Revolution: Digital Drafting
The 1980s brought the first major shift as 2D CAD systems began replacing drafting tables. This transition improved efficiency and documentation, but it initially amounted to a digital version of manual drafting. Everything still had to be dimensioned, checked, and coordinated by hand.
2D CAD delivered significant advantages:
- Easier revision management
- Improved drawing consistency
- Better document storage and retrieval
- More precise dimensioning
However, fundamental challenges remained unsolved:
- Visualizing complex systems in multiple planes remained difficult
- Coordination between disciplines relied heavily on manual overlays
- Field fit-up issues weren’t always evident until construction
- Design intent could be lost between drawing sets
This era represented a digital optimization of manual processes rather than a fundamental reinvention. The tools changed, but the mental models and workflows largely carried forward from the physical drafting era.
Early 3D Digital Piping Design: The Visual Transition
By the late 1980s and early 1990s, 3D design tools began to gain traction, offering a bridge between physical models and modern intelligent systems. These early 3D tools were primarily visual models and digital representations offering better spatial understanding, but lacking the intelligence and automation we expect today.
In this transitional era, designers could visualize pipe routes and equipment layouts in three dimensions, but critical technical details required separate management:
- Piping specifications were often maintained in separate systems
- Material tracking and bills of materials required manual inputs
- Wall thicknesses and pressure calculations remained external to the model
- Documentation generation still demanded significant manual effort
These early systems offered compelling visualization but didn’t yet deliver the integrated workflows that would eventually transform the discipline. They served primarily as better communication tools while maintaining many of the separate processes of previous eras.
The Intelligent 3D Revolution
Today’s modern design platforms represent a genuine paradigm shift. Systems like Plant 3D, Aveva E3D, and Hexagon Smart 3D have transformed piping design from a primarily visual exercise into a comprehensive data management discipline that happens to have a visual component.
The distinguishing characteristic of these modern systems is their intelligence. This intelligence shows in the ability to embed specifications, engineering standards, and construction requirements directly into the model:
- Piping engineering specifications automatically determine wall thicknesses, materials, and fitting types
- Clash detection algorithms identify spatial conflicts across disciplines
- Automated isometric drawings and bills of materials generate directly from the model
- Fabrication and construction documentation maintains bidirectional links to the design
- Laser scan integration allows precise alignment with existing conditions
This intelligence extends beyond geometry to validate designs against physical and operational requirements, verifying that a pipe not only fits in the available space but also meets pressure ratings, can be properly supported, and allows for thermal expansion.
For a deeper look at how specs are embedded and enforced in 3D tools, read: Decoding Piping Specifications: More Than Just a Pipe Chart
Shifting Roles: The Changing Balance of Piping Design and Engineering
One of the most significant transformations in the industry has been the dramatic shift in the relationship between design and engineering functions. In the 1970s through early 1990s, for every engineering hour spent on process design, there were typically 2 or more hours of associated design work. Design departments were substantially larger than their engineering counterparts, with specialized roles operating in a sequential workflow:
- Drafters created base documentation (P&ID’s, layouts, details)
- Piping Designers added technical content and made routing decisions
- Checkers verified work against specifications
- Engineers performed calculations and established technical requirements
Today, that ratio has shifted toward near-parity. Several technological factors have driven this transformation:
- Automated documentation extraction from 3D model, reducing manual drafting time
- Intelligent specifications and clash detection eliminating coordination meetings
- Digital libraries enabling rapid implementation of standard solutions
- Integrated validation tools allowing real-time checking against engineering standard
This efficiency gain represents progress, but has created new challenges in mentorship and professional development. In earlier eras, the separation of roles fostered deep specialization, while requiring extensive collaboration between disciplines. Designers and engineers developed comprehensive knowledge that extended to construction techniques, installation sequences, material behavior, and infrastructure interactions.
Modern tools can potentially mask this need for comprehensive understanding. The most successful organizations recognize that while tasks have been redistributed, the fundamental knowledge requirements remain. They emphasize mentoring, field experience, and knowledge management to ensure that expertise in both technical requirements and practical implementation continues to inform every aspect of piping design, regardless of which role now performs the work.
What Technology Can’t Replace
Despite the remarkable capabilities of modern design tools, certain fundamentals remain constant. Software doesn’t replace experience; it amplifies it. A technically perfect digital model can still represent a deeply flawed design if it fails to account for:
- Maintenance access requirements
- Realistic construction and installation sequences
- Equipment removal and replacement paths
- Operational needs and field realities
The most sophisticated tools still require designers who understand not just how to use the software, but how piping systems actually function in the field. As one veteran designer noted, “The more you lean on technology, the higher the chances are that there are gaps in understanding what truly is constructible. Technology makes design more streamlined but doesn’t necessarily capture context and best practices.”
The Integration of Scanning and Reality Capture
The latest evolution in piping design incorporates high-precision laser scanning and reality capture technologies. These tools bridge the gap between existing conditions and new design by creating accurate digital representations of the physical world.
Modern workflows often begin with laser scanning to capture the design area before modeling starts. This approach ensures that new piping systems align properly with existing structures and systems, particularly in retrofit projects or expansions where documentation may be incomplete or outdated.
However, this efficiency comes with an unintended consequence. While scanning is an order of magnitude faster than traditional field measurement, it significantly reduces the field time that traditionally allowed designers to understand operations, maintenance needs, and practical system realities. This represents a critical loss in professional development that cannot be captured through scanning alone.
Effective scanning still requires more than technical operation of the equipment. The best results come when scanners are operated by designers who understand piping systems and can recognize what contextual information matters for design development.
Finding Balance: Technology and Field Knowledge
Today’s most effective piping design combines the precision and efficiency of intelligent 3D tools with the practical knowledge that comes from field experience. This balance involves:
- Beginning with laser scans to capture the physical context
- Using hand sketches and conceptual layouts to explore options quickly
- Employing intelligent 3D models for detailed development and documentation
- Maintaining regular communication with operations, maintenance, and installation teams
- Conducting both virtual and physical reviews to validate designs
The goal isn’t merely to produce visually impressive models but to design piping systems that can be efficiently built, safely operated, and easily maintained throughout their lifecycle.
The challenge is ensuring that efficiency gains from modern technology don’t come at the expense of field knowledge development. Organizations must deliberately create opportunities for designers to spend meaningful time in operating facilities and learning from more senior designers.
Looking Forward: What’s Next in Piping Design & Engineering
As technology continues to evolve, several trends are shaping the future of piping design:
- Enhanced integration between design outputs and construction inputs
- Virtual and augmented reality for immersive design reviews
- Artificial intelligence to optimize routing and support placement
- Generative design approaches that create multiple options based on constraints
- Improved simulation of fluid dynamics, thermal behavior, and structural response
However, the most successful implementations will continue to balance technological capabilities with practical field knowledge. The fundamentals of what makes a piping system constructible and maintainable remain relatively constant even as the tools to design them evolve.
The Core Remains the Same
Through every technological transition, from physical models to 2D CAD to intelligent 3D systems, the underlying objective of piping design remains unchanged: translate design intent into real-world success. While the tools have dramatically improved efficiency and accuracy, they serve the same fundamental purpose.
The most valuable insight from this evolution isn’t about software capabilities but about the persistent importance of understanding context. Today’s designers must remain fluent in modern tools while staying grounded in the practical realities of construction, operation, and maintenance. Only with this balanced perspective can they fully leverage the remarkable capabilities of modern piping engineering technology to create systems that work not just in the digital world, but in the physical one.
